scan_to_map

参考网址:

hector_slam

Forrest-Z/Slam-Project-Of-MyOwn

简介

和ICP方法不同，当前帧的激光雷达扫描数据与已建好的历史占据栅格地图进行匹配，根据激光雷达观测点在地图上占据栅格的概率值的和来建立误差方程，使用高斯牛顿法求解方程使得占据概率值的和最大，得到最佳的机器人位姿坐标变换。此外还使用了双线性插值方法(Bilinear Interpolation)来计算当前帧激光雷达数据在地图上对应点的占据概率，提高匹配精准度。

最常见的就是hector的前端里程计了.

实现

代码

#include "scanMatch.h"
#include "utils.h"

//#define TERMINAL_LOG

namespace slam {

ScanMatchMethod::ScanMatchMethod() : mP00( 0 ),
				     mP11( 0 ),
				     mP01( 0 ),
				     mP10(0)
{

}

ScanMatchMethod::~ScanMatchMethod()
{

}

float ScanMatchMethod::bilinearInterpolation( const OccupiedMap &occuMap, const Eigen::Vector2f &coords )
{
	// 1. judge weather out of range
	if( occuMap.isPointOutOfRange( coords ) ){
		return 0.0f;
	}

	// 2. map coords are always positive, floor them by casting to int
	Eigen::Vector2i indMin( coords.cast<int>() );

	// 3. factor0 = ( x - x0 )
	//    factor1 = ( y - y0 )
	float factor0 = coords[0] - static_cast<float>( indMin[0] );
	float factor1 = coords[1] - static_cast<float>( indMin[1] );

	// 4. find p(m) point in map coordinate
	int sizeX = occuMap.getSizeX();
	int index = indMin[1] * sizeX + indMin[0];

	// 5. get the probability of the four points
	mP00 = occuMap.getCellOccupiedProbability( index );

	index ++;
	mP10 = occuMap.getCellOccupiedProbability( index );

	index += sizeX - 1;
	mP01 = occuMap.getCellOccupiedProbability( index );

	index ++;
	mP11 = occuMap.getCellOccupiedProbability( index );

	// 6. factorInv0 = 1 - ( x - x0 )
	//    factorInv1 = 1 - ( y - y0 )
	float factorInv0 = 1.0f - factor0;
	float factorInv1 = 1.0f - factor1;

	// 7. M(Pm) = (y - y0) * { (x - x0) * M(P11) + [1 - (x - x0)] * M(P01) } + [1 - (y - y0)] * { (x - x0) * M(P10) + [1 - (x - x0)] * M(P00) }
	return ( factor1 * ( factor0 * mP11 + factorInv0 * mP01 ) ) + ( factorInv1 * ( factor0 * mP10 + factorInv0 * mP00 ) );
}


Eigen::Vector3f ScanMatchMethod::bilinearInterpolationWithDerivative( const OccupiedMap &occuMap, const Eigen::Vector2f &coords )
{
	// M(Pm) = (y-y0)/(y1-y0) * { [(x-x0)/(x1-x0)] * M(P11) + [(x1-x)/(x1-x0)] * M(P01) }
	//	  +(y1-y)/(y1-y0) * { [(x-x0)/(x1-x0)] * M(P10) + [(x1-x)/(x1-x0)] * M(P00) }
	// among them:
	// y1 - y0 = 1
	// x1 - x0 = 1
	// x1 - x = 1 - ( x - x0 )
	// y1 - y = 1 - ( y - y0 )
	//
	// M(Pm) = (y-y0) * { (x-x0) * M(P11) + (1-(x-x0)) * M(P01) }
	//	  +(1-(y-y0)) * { (x-x0) * M(P10) + (1-(x-x0)) * M(P00) }
	//
	// dM(Pm)/dx = (y-y0)/(y1-y0) * { M(P11) - M(P01) }
	//	      +(y1-y)/(y1-y0) * { M(P10) - M(P00) }
	//	     = (y-y0) * { M(P11) - M(P01) } + (1-(y-y0)) * { M(P10) - M(P00) }
	//
	// dM(Pm)/dy = (x-x0)/(x1-x0) * { M(P11) - M(P10) }
        //            +(x1-x)/(x1-x0) * { M(P01) - M(P00) }
	//	     = (x-x0) * { M(P11) - M(P10) } + (1-(x-x0)) * { M(P01) - M(P00) }
	//
	// dM(Pm)/dPm = { dM(Pm)/dx, dM(Pm)/dy }

	// 1. judge weather out of range
        if( occuMap.isPointOutOfRange( coords ) ){
                return Eigen::Vector3f( 0.0f, 0.0f, 0.0f );
        }

        // 2. map coords are always positive, floor them by casting to int
        Eigen::Vector2i indMin( coords.cast<int>() );

#ifdef TERMINAL_LOG
	std::cout<<"intergerMin = "<<std::endl<<indMin<<std::endl;
#endif

        // 3. factor0 = ( x - x0 )
        //    factor1 = ( y - y0 )
        float factor0 = coords[0] - static_cast<float>( indMin[0] );
        float factor1 = coords[1] - static_cast<float>( indMin[1] );

        // 4. find p(m) point in map coordinate
        int sizeX = occuMap.getSizeX();
        int index = indMin[1] * sizeX + indMin[0];

        // 5. get the probability of the four points
        mP00 = occuMap.getCellOccupiedProbability( index );

#ifdef TERMINAL_LOG
	std::cout<<"Mp(00) = "<<mP00<<std::endl;
#endif
        index ++;
        mP10 = occuMap.getCellOccupiedProbability( index );

#ifdef TERMINAL_LOG
	std::cout<<"Mp(10) = "<<mP10<<std::endl;
#endif
        index += sizeX - 1;
        mP01 = occuMap.getCellOccupiedProbability( index );

#ifdef TERMINAL_LOG
	std::cout<<"Mp(01) = "<<mP01<<std::endl;
#endif
        index ++;
        mP11 = occuMap.getCellOccupiedProbability( index );

#ifdef TERMINAL_LOG
	std::cout<<"Mp(11) = "<<mP11<<std::endl;
#endif
        // 6. factorInv0 = 1 - ( x - x0 )
        //    factorInv1 = 1 - ( y - y0 )
        float factorInv0 = 1.0f - factor0;
        float factorInv1 = 1.0f - factor1;


	// 7. M(Pm) = (y - y0) * { (x - x0) * M(P11) + [1 - (x - x0)] * M(P01) } + [1 - (y - y0)] * { (x - x0) * M(P10) + [1 - (x - x0)] * M(P00) }
	// ---------------------------------------------------------------------------------------------------------------------------------------
	// d(M(Pm)) / dx = (y - y0) * [M(P11) - M(P01)] + (1 - (y - y0)) * [M(P10) - M(P00)]
	// ---------------------------------------------------------------------------------
	// d(M(Pm)) / dy = (x - x0) * [M(P11) - M(P10)] + (1 - (x - x0)) * [M(P01) - M(P00)]
	return Eigen::Vector3f( ( ( factor1 * ( factor0 * mP11 + factorInv0 * mP01 ) ) + ( factorInv1 * ( factor0 * mP10 + factorInv0 * mP00 ) ) ),
				( factor1 * ( mP11 - mP01 ) + factorInv1 * ( mP10 - mP00 ) ),
				( factor0 * ( mP11 - mP10 ) + factorInv0 * ( mP01 - mP00 ) )
			      );
}


void ScanMatchMethod::getHessianDerivative( const OccupiedMap &occuMap,
					    Eigen::Vector3f &robotPoseInWorld,
                                   	    const ScanContainer &scanPoints,
                                   	    Eigen::Matrix3f &H,
                                   	    Eigen::Vector3f &dTr )
{
	// H = Sigma(i = 1 to n){ Nabla( Si(cauchy) ) * [( d(Si(cauchy)) )/( d(cauchy) )] }^2
	// n is the number of the scan points
	//
	// Si(cauchy) = | cosRot -sinRot | * | x_i | + | Px |
	// 		| sinRot  cosRot |   | y_i |   | Py |
	//
	// among them:
	// ( x_i, y_i ) is the point that lidar has observed in map coordinate, i = 0, 1, 2, ..., n;
	// ( Px, Py ) is the Translation vector
	// | cosRot -sinRot |
	// | sinRot  cosRot | is the Rotation Matrix
	//
	// d(Si(cauchy)) / d(cauchy) = | 1	0	-sinRot * x_i - cosRot * y_i |
	//			       | 0	1	 cosRot * x_i - sinRot * y_i |
	//
	// Nabla( Si(cauchy) = dM(Pm)/dPm = { dM(Pm)/dx, dM(Pm)/dy }
	//
	// dTr = Sigma(i = 1 to n){ Nabla( Si(cauchy) ) * [( d(Si(cauchy)) )/( d(cauchy) )] } * { 1 - M( Si(cauchy) ) }

	int size = scanPoints.getSize();

	float sinRot = ::sin( robotPoseInWorld[2] );
	float cosRot = ::cos( robotPoseInWorld[2] );

#ifdef TERMINAL_LOG
	std::cout<<"sinRot = "<<sinRot<<std::endl;
	std::cout<<"cosRot = "<<cosRot<<std::endl;
#endif

	H = Eigen::Matrix3f::Zero();
	dTr = Eigen::Vector3f::Zero();

#ifdef TERMINAL_LOG
	std::cout<<"size = "<<size<<std::endl;
#endif

	for( int i = 0; i < size; i ++ ){
		// 1. get the current point in laser coordinate
		Eigen::Vector2f currPointInLaser( scanPoints.getIndexData( i ) );
		Eigen::Vector2f currPointInScaleLaser( scanPoints.getIndexData( i ) * occuMap.getScale() );

		// 2. Transform the End Point from Laser Coordinate to World Coordinate
		Eigen::Vector2f currPointInWorld( occuMap.observedPointPoseLaser2World( currPointInLaser, robotPoseInWorld ) );

#ifdef TERMINAL_LOG
		std::cout<<"currPointInWorld: "<<std::endl<<currPointInWorld<<std::endl;
#endif

		// 3. Transform the End Point from World Coordinate to Map Coordinate
		Eigen::Vector2f currPointInMap( occuMap.observedPointPoseWorld2Map( currPointInWorld ) );

#ifdef TERMINAL_LOG
		std::cout<<"currPointInMap: "<<std::endl<<currPointInMap<<std::endl;
#endif

		// 4. get the M(Pm), d(M(Pm))/dx, d(M(Pm))/dy
		Eigen::Vector3f interpolatedValue( bilinearInterpolationWithDerivative( occuMap, currPointInMap ) );

#ifdef TERMINAL_LOG
		std::cout<<"interpolatedValue: "<<std::endl<<interpolatedValue<<std::endl;
#endif

		// 5. the Objective Function: f(x) = 1 - M(Pm)
		float funcValue = 1.0f - interpolatedValue[0];

		// 6.
		dTr[0] += interpolatedValue[1] * funcValue;
		dTr[1] += interpolatedValue[2] * funcValue;

		// 7.
		float rotDeriv = ( interpolatedValue[1] * ( -sinRot * currPointInScaleLaser[0] - cosRot * currPointInScaleLaser[1] ) ) + ( interpolatedValue[2] * ( cosRot * currPointInScaleLaser[0] - sinRot * currPointInScaleLaser[1] ) );

		// 8.
		dTr[2] += rotDeriv * funcValue;

		// 9.
		H( 0, 0 ) += sqr( interpolatedValue[1] );
		H( 1, 1 ) += sqr( interpolatedValue[2] );
		H( 2, 2 ) += sqr( rotDeriv );

		H( 0, 1 ) += interpolatedValue[1] * interpolatedValue[2];
		H( 0, 2 ) += interpolatedValue[1] * rotDeriv;
		H( 1, 2 ) += interpolatedValue[2] * rotDeriv;

	}

	// 10.
	H( 1, 0 ) = H( 0, 1 );
	H( 2, 0 ) = H( 0, 2 );
	H( 2, 1 ) = H( 1, 2 );
}

bool ScanMatchMethod::estimateTransformationOnce( const OccupiedMap &occuMap,
                                 Eigen::Vector3f &estimateInWorld,
                                 const ScanContainer &scanPoints )
{
	getHessianDerivative( occuMap, estimateInWorld, scanPoints, H, dTr );

#ifdef TERMINAL_LOG
	std::cout<<"Hessian : "<<std::endl;
	std::cout<<H<<std::endl;
	std::cout<<"dTr: "<<std::endl;
	std::cout<<dTr<<std::endl;;
#endif

	if ( ( H(0, 0) != 0.0f ) && ( H(1, 1) != 0.0f ) ){

		// delta(cauchy) = H.inverse() * dTr;
		Eigen::Vector3f deltaCauchy( H.inverse() * dTr );

#ifdef TERMINAL_LOG
		std::cout<<"delata Cauchy: "<<std::endl<<deltaCauchy<<std::endl;
#endif

		if( deltaCauchy[2] > 0.2f ){
			deltaCauchy[2] = 0.2f;
			std::cout<<"delta Cauchy angle change too large"<<std::endl;
		}
		else if( deltaCauchy[2] < -0.2f ){
			deltaCauchy[2] = -0.2f;
			std::cout<<"delta Cauchy angle change too small"<<std::endl;
		}

		updateEstimatedPose( occuMap, estimateInWorld, deltaCauchy );

		return true;
	}

	return false;

}

void ScanMatchMethod::updateEstimatedPose( const OccupiedMap &occuMap, Eigen::Vector3f &estimateInWorld, Eigen::Vector3f &delta )
{
	Eigen::Vector3f estimateInMap( occuMap.robotPoseWorld2Map( estimateInWorld ) );

	// pose[t_time] = pose[(t - 1)_time] + delta( cauchy );
	estimateInMap += delta;

	estimateInWorld = occuMap.robotPoseMap2World( estimateInMap );
}

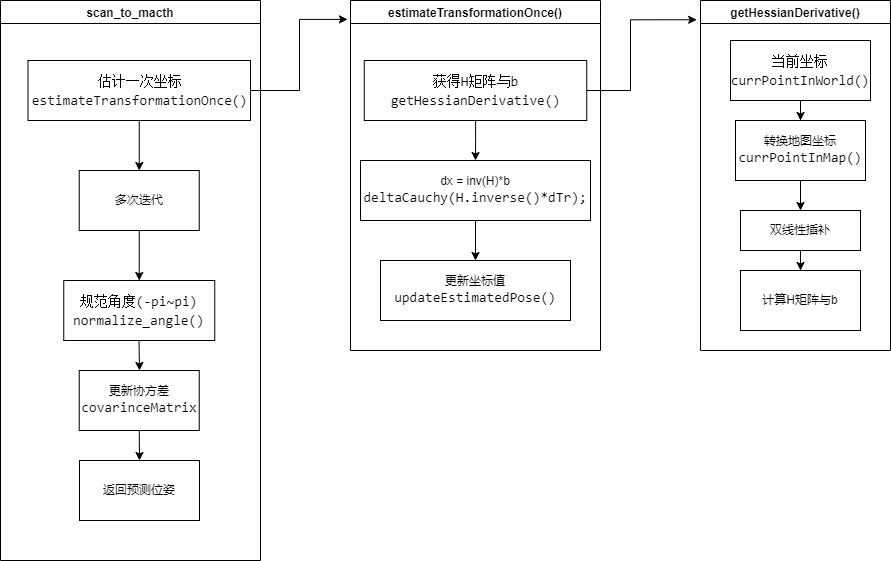

Eigen::Vector3f ScanMatchMethod::scanToMap( const OccupiedMap &occuMap,
                        Eigen::Vector3f &beginEstimatedPoseInWorld,
                        const ScanContainer &scanPoints,
                        Eigen::Matrix3f &covarinceMatrix,
                        int maxInterations )
{
	//std::cout<<"-----------------------------------LOGGGGG ---- OccupiedMap.getSizeX(): "<<occuMap.getSizeX()<<std::endl;

	Eigen::Vector3f estimatePose( beginEstimatedPoseInWorld );

	if( scanPoints.getSize() == 0 ){
		return beginEstimatedPoseInWorld;
	}

	// 1. first iteration
	estimateTransformationOnce( occuMap, estimatePose, scanPoints );

	// 2. multiple iterations
	for( int i = 0; i < maxInterations - 1; i ++ ){
		estimateTransformationOnce( occuMap, estimatePose, scanPoints );
	}

	// 3. normalize the angle [-PI ~ PI]
	estimatePose[2] = normalize_angle( estimatePose[2] );

	// 4. get the covariance matrix
	covarinceMatrix = Eigen::Matrix3f::Zero();

	covarinceMatrix = H;

	// 5. return the estimated pose in world coordinate
	return estimatePose;
}
}
